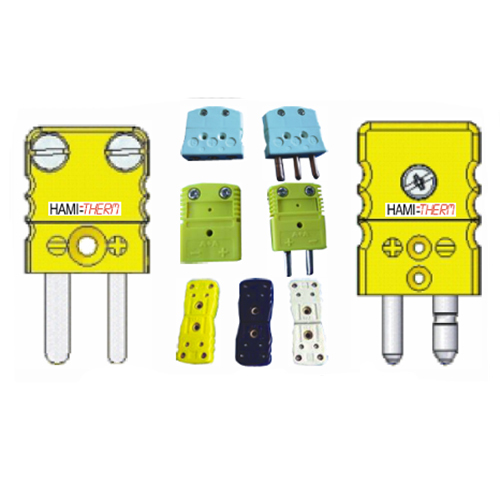

Thermocouple Connectors

Get a Price/Quote

MOQ : 100 Units

Thermocouple Connectors Specification

Material
Nickel alloys, Brass, Engineering plastics

Type
Male, Female, Panel Mount, In-line

Usage
Temperature Measurement

Theory
Seebeck Effect

Connection Method
Plug and socket

Customized
Available on request

Density
Gram per cubic centimeter(g/cm3)

Measuring Range
Depends on thermocouple type

Melting Point
Depends on alloy, commonly above 1000C

Precision
High accuracy

Protecting Tube Material
Thermoplastic or thermoset insulation

Sensor Type
Thermocouple

Size
Standard miniature and standard sizes

Temperature Range
-50C to +350C (typical)

Tensile Strength
High mechanical strength

Tolerance
2C or better

Wire Length
As required

Operating Voltage
Up to 250V

Flammability Rating
UL94 V-0

Contact Material
Copper, Nickel-plated or as specified

Color Code
IEC or ANSI standard colors

Max Current Rating
10A (varies by model)

Ambient Operating Temperature
-20C to +120C

Mounting Type
Panel or cable mount

Electrical Insulation
High, suitable for instrumentation

Contact Resistance
< 2 m

Compatibility
Type K, J, T, E, R, S, N etc. thermocouples

Application
Industrial, Research, HVAC, Process Control

Durability
High cycle durability tested

Thermocouple Connectors Trade Information

Minimum Order Quantity
100 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Thermocouple Connectors

Discover the acclaimed Thermocouple Connectors-now a new release at an unbeatable price. Engineered with masterful precision, these connectors boast spectacular contact resistance under 2 m, exceptional electrical insulation, and high mechanical strength. Offered in both IEC and ANSI color codes, the product provides unrivaled compatibility for K, J, T, E, R, S, and N thermocouples. Ideal for both panel and cable mounting, the connectors support current ratings up to 10A, and their durability has been rigorously cycle-tested for industrial and research excellence.

Unmatched Features and Versatile Applications

With a high flammability rating (UL94 V-0), these connectors ensure superior safety and reliability. Designed for seamless integration in instrumentation, HVAC, process control, and research labs, they are available in standard and miniature sizes. The connectors are suitable for wide temperature and measuring ranges, making them ideal for demanding industrial and scientific environments. Their customizable options and variety of contact materials cater to unique requirements and specialized site installations.

Payment, Supply, and Certification Details

We assure quick dispatch and careful packing & dispatch for every order. Supply ability remains robust to meet both small and large-scale requirements, following receipt of a valid purchase order. All connectors come certified for quality and safety, ensuring peace of mind for our clients. Trusted across India, our process emphasizes consistency, and reliability from procurement to timely delivery with every shipment.

FAQ's of Thermocouple Connectors:

Q: How do I select the right thermocouple connector for my application?

A: Selecting the appropriate connector involves identifying your thermocouple type (K, J, T, E, R, S, N, etc.), desired mounting (panel or cable), and your specific electrical and temperature requirements. Customizations are available upon request.

Q: What benefits do the Thermocouple Connectors offer in industrial applications?

A: They provide high mechanical strength, low contact resistance, and excellent thermal and electrical insulation, ensuring reliable performance in demanding industrial and laboratory settings.

Q: When can I expect my order to be dispatched after placement?

A: Typically, orders are packed and dispatched promptly following the receipt of a valid purchase order, ensuring minimal lead-time.

Q: Where are these connectors primarily used?

A: They are widely used in industrial automation, HVAC systems, research laboratories, and process control setups where precision temperature measurements are vital.

Q: What certifications do these connectors carry?

A: Each connector is supplied with certifications confirming compliance to industry standards, emphasizing safety, quality, and reliability.

Q: How do I request a customized connector solution?

A: Contact our team with your application details; we provide tailored solutions for contact material, color code, mounting style, and wire length to suit your specific needs.
