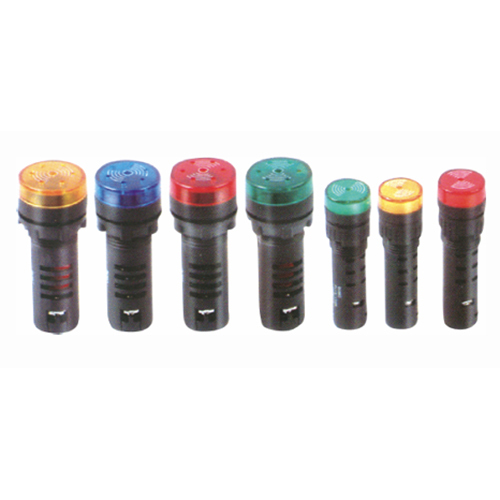

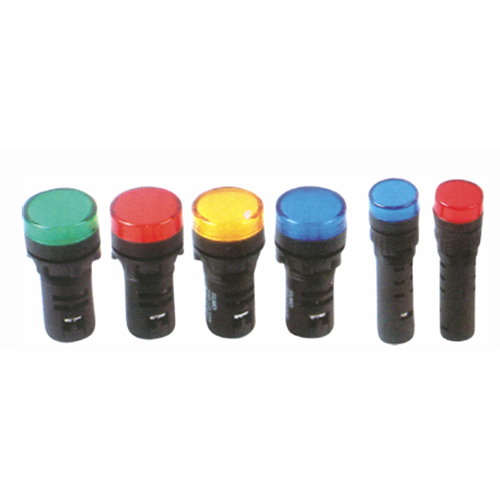

LED Panel Indicators

Get a Price/Quote

MOQ : 100 Units

LED Panel Indicators Specification

Protection Level
IP65

Mounting Type
Panel Mounted

IP Rating
IP65

Current
20mA

Phase
Single Phase

Output
Visual Indication

Frequency
50/60 Hz

Features
Low Power Consumption, Long Service Life, High Brightness, Shock & Vibration Proof

Usage & Applications
Electrical Control Panels, Industrial Equipment, Switchboards

Connectivity Type
Screw Terminal

Installation Type
Panel Mount

Display
LED

Switch Type
Indicator

Product Type
LED Panel Indicator

Operating Temperature
-25C to +55C

Working Temperature
-25C to +55C

Input
AC/DC

Diameter
16mm / 22mm (Standard)

Application
Panel Mount Indication

Supply Voltage
12V, 24V, 110V, 220V AC/DC (Available in various voltages)

Accuracy
High Visibility

Dimension (L*W*H)
Standard fitting; varies per model

Weight
Approx. 10g

Compliance
RoHS, CE Certified

Luminous Intensity
Up to 80cd/m2

Color Options
Red, Green, Yellow, Blue, White

Life Span
>30,000 h

Environmental Protection
Moisture proof, Dust Proof

Ambient Humidity
95%

Response Time
<10 ms

Material
Polycarbonate Body, Brass Terminals

LED Panel Indicators Trade Information

Minimum Order Quantity
100 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About LED Panel Indicators

Temp. Range : -25C to +55C
Humidity : 93% non-condensing
Works Normally from 3~60Hz
Vibration : 0.7g.
Pollutin Class : 3
Intall Sort : III
Model Marked "TH" for moisture resistance

Experience the lofty standard of indication with our Special New Release: LED Panel Indicators, the paragon of reliability for your control panels. Built with a robust polycarbonate body and invincible brass terminals, these LEDs shine in five vibrant colors-Red, Green, Yellow, Blue, White-and offer up to 80cd/m2 luminous intensity. Enjoy long-lasting performance with over 30,000 hours of life, RoHS and CE certification, and moisture/dust proof IP65 protection. Try Now to discover advanced durability, high visibility, and energy efficiency for industrial applications across India.

Features & Applications of LED Panel Indicators

Engineered for invincible performance, these LED Panel Indicators offer high brightness, swift response, low power consumption, and shock resistance. Suitable for use in electrical control panels and switchboards, their robust construction-IP65, polycarbonate body-adapts seamlessly to harsh industrial environments. Their surface-mounted, panel-mount design ensures flexible installation across industrial machinery and equipment, supporting voltage variants for single-phase setups. Choose from five illuminating color options to decode system status effortlessly and maintain optimal operational safety.

Sample Availability, Packaging & Export Markets

Request a sample to evaluate the paragon quality firsthand. Each LED Panel Indicator is securely packaged to ensure flawless handover and protection during transit. Bulk orders are efficiently managed with packaging tailored to your estimate and delivery requirements, ensuring timely dispatch. Major export markets served include Asia, Middle East, and Africa. Reliable logistics networks guarantee the safe arrival of these loftily crafted indicators to your site, maintaining quality from our supplier network in India to your doorstep.

FAQ's of LED Panel Indicators:

Q: How do I install the LED Panel Indicator on my control panel?

A: The indicator is designed for panel mount installation; simply fit it into a standard 16mm or 22mm diameter panel cutout and secure the screw terminals for robust connectivity.

Q: What types of voltages are available for these indicators?

A: Our LED Panel Indicators support various supply voltages including 12V, 24V, 110V, and 220V AC/DC, making them versatile for different electrical environments.

Q: Where are these LED Panel Indicators most commonly used?

A: They are primarily used in electrical control panels, industrial equipment, and switchboards, where reliable visual indication is critical for safety and operation.

Q: What is the estimated lifespan of the LED Panel Indicator?

A: Engineered for durability, these LEDs boast an operating life of over 30,000 hours, ensuring long-term service with minimal maintenance.

Q: What is the process if I want to receive a product sample?

A: Simply contact our sales team to arrange sample handover. We provide samples upon request, and packaging is designed to protect the product during delivery.

Q: What are the special benefits of using these indicators?

A: They provide high brightness, fast response time, low energy consumption, and are built for moist and dusty environments with IP65 protection, ensuring reliable indication in demanding settings.
