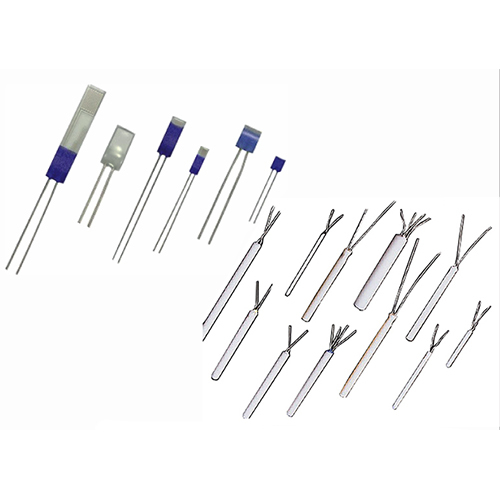

Film And Wirewound RTD Element

Get a Price/Quote

MOQ : 100 Units

Film And Wirewound RTD Element Specification

Lead Material
Nickel-plated copper

Tolerance Class
Class A / Class B (IEC 60751)

Thermal Response Time
Less than 3 seconds (in water at 0.4 m/sec)

Humidity Range
0 to 100% RH (non-condensing)

Nominal Resistance
100 Ohm at 0C (Class A/B) and others available

Compliance Standard
IEC 60751, DIN EN 60751

Storage Temperature
-40C to +100C

Mounting Type
PCB, Probe or Customized

Stability
High long-term stability

Maximum Current
1 mA (typical for measurement)

Dielectric Strength
1.5 kV AC

Film And Wirewound RTD Element Trade Information

Minimum Order Quantity
100 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Film And Wirewound RTD Element

Discover the unparalleled precision and stellar performance of the Film And Wirewound RTD Element, engineered for astonishing temperature sensing accuracy. With a fresh approach to reliability, this rare platinum-based element offers nominal resistance of 100 Ohm at 0C (Class A/B) and rapid thermal response times-less than 3 seconds in water. High long-term stability, robust dielectric strength (1.5 kV AC), and flexible mounting options (PCB, probe, custom) set this component apart. Compliant with IEC 60751 and DIN EN 60751 standards, it's ideal for demanding industrial sensor applications, automation, and process control.

Versatile Usage and Superior Commercial Performance

The Film And Wirewound RTD Element is meticulously crafted for industrial sensors, automation systems, and precise temperature measurement applications. Its robust features, such as high stability, fast response time, and compatibility with 2-wire, 3-wire, or 4-wire setups, make it a staple for commercial environments. Designed for seamless integration in industrial automation and process control, this RTD element's platinum and ceramic build ensures consistent, high-grade performance across various usage types and demanding operational conditions.

Sample Availability, Supply Capability, and Transaction Terms

Samples of the Film And Wirewound RTD Element are available for evaluation, ensuring informed selection before large-scale deployment. With a stellar supply ability, regular shipments and prompt handovers can be arranged across India and globally. Payment terms are tailored to suit client requisites, with clear cost estimates provided prior to order confirmation. The supplier ensures efficient processing from sample dispatch to commercial-scale delivery, supporting smooth transactions and reliable support throughout the purchasing cycle.

FAQ's of Film And Wirewound RTD Element:

Q: How does the Film And Wirewound RTD Element function in temperature measurement?

A: The element measures temperature by detecting resistance changes in its platinum conductor as temperature varies. This precise change correlates directly with the temperature, offering reliable readings for industrial applications.

Q: What are the available mounting and connector options for this RTD element?

A: The element supports versatile mounting types, such as PCB, probe, or can be customized to your requirements, and features bare lead or terminal pad connections for seamless integration into various setups.

Q: Where can these RTD elements be utilized?

A: They are used in industrial sensors, automation, process control, and other commercial temperature monitoring systems due to their robust features, reliability, and compliance with international standards.

Q: What is the process to obtain a sample and estimate lead time for bulk orders?

A: You can request a sample for evaluation before placing bulk orders. The supplier will provide a supply estimate and arrange shipment after confirming order details and payment terms.

Q: What benefits do Class A and Class B tolerance RTDs offer?

A: Class A and B tolerance RTDs provide high-precision temperature measurement. Class A offers tighter accuracy; Class B provides reliable performance in standard applications, both meeting IEC and DIN EN 60751 requirements.
