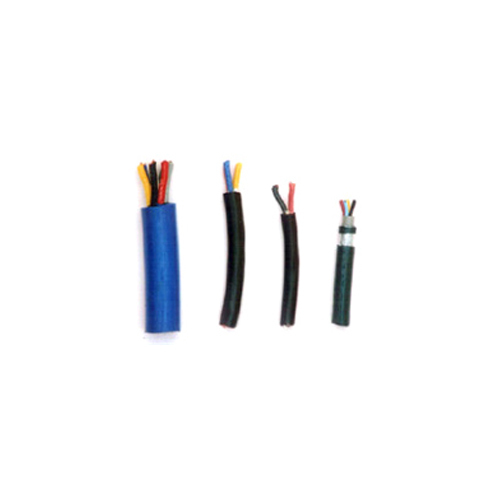

Elestomer Compensating Cable

Get a Price/Quote

MOQ : 10 Rolls

Elestomer Compensating Cable Specification

Weight
Depends on type and length

Dielectiric Strength
2.0 kV AC/min

Impedance
Varies with construction (typically not specified for thermocouple cables)

Core Material
Compensating Alloy

Number of Conductor
2, 4, 8 or as specified

Core Number
2 or more

Cable Type
Compensating cable for thermocouple

Armored Material
Optional - Steel Wire Armour (SWA)

Features
High flexibility, oil and chemical resistant, suitable for harsh industrial conditions

Tensile Strength
10 N/mm2

Rated Temperature
-40C to +180C

Usage & Applications
Temperature probes, industrial process control

Diameter
Varies with construction (e.g. 6mm to 15mm)

Insulation
Heat-resistant Elastomer

Conductor Shape
Round

Conductor Type
Stranded

Install Type
Fixed & Flexible installation

Operating Temperature
-40C to +180C

Product Type
Elastomer Compensating Cable

Length
Customizable, standard rolls of 100 meters

Voltage
Up to 300V

Insulation Material
Other

Application
Other

Conductor Material
Copper, Tinned Copper, or Compensating Alloy

Jacket Material
Elastomer

Storage Temperature
-40C to +70C

Connector Color
Not Applicable / As required

Shield Material
Tinned Copper Braiding (optional)

Jacket Color
Other

Dimension (L*W*H)
Based on number of cores and size (e.g. 3x1.5mm2)

Color
Yellow, Green or as per customer specification

Material
Elastomer and Compensating Alloy

Size
0.5 mm2, 1.0 mm2, 1.5 mm2 and customized

Outer Sheath Hardness
Medium (Shore A 605)

Packing Type
Coils or drums

Fire Resistance
Halogen free and flame retardant (on request)

Filler Material
Elastomeric or suitable non-hygroscopic material

Minimum Bend Radius
6x overall diameter

RoHS Compliance
Yes

UV Resistance
Yes

Pair Identification
Numbered or color coded

Elestomer Compensating Cable Trade Information

Minimum Order Quantity
10 Rolls

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Rolls Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Elestomer Compensating Cable

Available For All Types Of Thermocouple

Conductor: Original / Alternate / Compensating
Size: As per customer requirement
Sheath: PVC / PTFE / Fibre / Asbestos / Ceramic fibre / Mica and Combination there of.

High Temperature Thermocouple Cable

Specially developed for high temperature application upto 1100oC using Mica and Ceramic combination. Cable is ideal for furnace, foundry etc.

Get your hands on the prime, lustrous Elastomer Compensating Cable-sought-after for industrial thermocouple and temperature measurement applications. Take advantage of customizable lengths, UV resistance, and superior fire resistance (halogen free and flame retardant available on request). Access high flexibility, oil, and chemical resistance for demanding environments. Made with stranded copper, tinned copper, or compensating alloy conductors, these cables boast options like pair identification, medium-hard outer sheath, and RoHS compliance. Supplied in coils or drums, these cables ensure enduring performance across extreme temperature ranges. Perfect for suppliers and traders in India seeking quality.

Versatile Applications & Reliable Performance

The Elastomer Compensating Cable excels in both fixed and flexible installations for thermocouple and industrial process control, making it an ideal pick for harsh environments. Its usage extends to temperature probes and other precision instruments, withstanding oil, chemicals, UV, and mechanical stress. Designed for measurement in various media including air, liquids, and gases, this cable remains stable and secure-providing consistent, long-lasting performance across diverse settings.

Prompt Delivery & Secure Packaging Solutions

Order processing for Elastomer Compensating Cable is streamlined for efficiency, supporting prompt exchange and quick turnaround on requests. Cables are carefully packed in protective coils or sturdy drums to ensure safe transportation. We serve major export markets across Asia, the Middle East, and Africa, with flexible shipping options available. Delivery times depend on order size, customization, and destination, but our logistics team coordinates closely to meet your desired delivery schedule.

FAQ's of Elestomer Compensating Cable:

Q: How is the Elastomer Compensating Cable identified for pair configuration?

A: The cable offers pair identification either through sequential numbering or color coding, depending on customer preference, streamlining installation and maintenance.

Q: What installations are best suited for this compensating cable?

A: It is designed for both fixed and flexible installations in industrial temperature measurement and process control, accommodating harsh industrial conditions and a broad temperature range.

Q: When can I expect delivery after placing an order?

A: Delivery time is influenced by the order quantity, customization needs, and shipping destination, but orders are processed promptly and dispatched as soon as possible.

Q: Where is the Elastomer Compensating Cable primarily used?

A: The cable is mainly used in industrial environments, temperature probes, and process control systems, where reliability and durability under mechanical and environmental stress are required.

Q: What is the process for ordering customized cable lengths or colors?

A: Simply specify your requirements during the order process. Customizations in length, color, and specific features are fully supported to match your unique application.

Q: How does the cable benefit harsh industrial environments?

A: Its high flexibility, oil and chemical resistance, UV durability, and fire resistance make it exceptionally suitable for tough industrial and outdoor applications.
